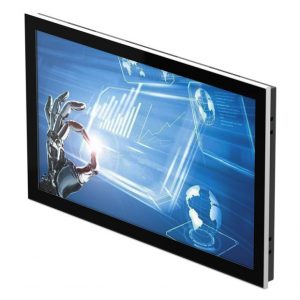

10.4″ Industrial Touch Panel Computer
$10.40
TPC-PC104A
10.4-inch Intel Low power Apollo lake J3455/J3355 PCAP touch panel computer
* Magnesium aluminum panel, sheet-metal box structure, front IP65 rating;
* Intel Apollo lake J3455/J3355 low power processor;
* DC 12V input, with over-current, over-voltage protection;
* 2*Intel GLAN, 6*RS232 (Optional 1*RS485), 5*USB;
* I/O: 6x USB, 2x GLAN, 6x COM, 1x HDMI, 1x VGA, Audio.
10 in stock
Description
| Model Item | TPC-PC104A1 | TPC-PC104A2 |
| System | ||
| BIOS | SPI AMI EFI BIOS | |
| CPU | Intel Celeron J3455 | Intel Celeron J3355 |
| CPU Ghz | Quad-core Four threads, 1.5Ghz | Dual-core Two threads, 2.0Ghz |
| Memory | SO-DIMM, DDR3L, Max. up to 8GB | |
| Graphic card | Intel HD Graphics 500 | |
| Network | 2*Intel I211AT, expansion with Wifi/3G/4G | |
| Storage | 1x 2.5” SATA + 1x mSATA | |
| Audio | Realtek ACL 269 controller | |
| Watch dog | Programmable 1~255 seconds | |
| Operating System | Win 10, Linux, Unix | |
| I/O | ||
| Network | 2x RJ45, 10/100/1000 Mbps | |
| USB | 2x USB 2.0 + 4x USB 3.0 | |
| COM | 6x RS232 (Surge and electrostatic protection) COM4/5 support RS232/RS485 COM6 support RS232/TTL |
|
| Audio | Line-In, Line-Out | |
| Display | 1*VGA, 1*HDMI | |
| Power Input | 1*2 pins, phoenix terminal | |
| LCD | ||
| Size/Type | 10.4″ TFT LCD | |
| Resolution | 1024 * 768 (XGA) | |
| Brightness | 350 (cd/m2) | |
| Brightness MTBF | WLED, 30 000 hours | |
| Display area | 211.2 x 158.4 | |
| Viewing angle | 75/75/75/75 (Typ.) | |
| TOUCH | ||
| Type | Projective capacitive (P-cap.) | |
| Interface | USB | |
| Transparency | >90±3% | |
| Touch points | 10 Points | |
| Durability | >100 000 000 times | |
| Surface hardness | Mohs 6H | |
| Operating force | ≤10g | |
| Special treatment | Anti-fingerprint treatment (AF) | |
| Optional Resistive touch | ||
| Type | High-temp. precision 5 wires Resistive touch | |
| Interface | USB (Optional RS232) | |
| Transmittance | >890±3% | |
| Resolution | 4096 x 4096 | |
| Click life | 250g/ 35 000 000 times | |
| Response time | <15ms | |
| Operating force | ≤50g | |
| Surface treatment | PET film laminated | |
| Surface hardness | >Mohs 3H | |
| Structure | ||
| Front Panel | Magnesium-aluminum alloy, Anodizing treatment | |
| Back Panel | SGCC Galvanized plate sheet, Sand-blasting | |
| Cooling System | Finned aluminum heatsinks, fan-less design | |
| IP rating | IP65 front panel | |
| Mounting | Panel mounting, support VESA 75/100 | |
| Hole dimension | 253 x 195 (mm) | |
| Product Dimension | 264 x 205.6 x 84 (mm) | |
| Net weight | 4KG | |
| Power and Environmental | ||
| Voltage Input | DC 12V (Over-current, Over-voltage and reverse polarity protection) | |
| Power Consumption | About 20 W | |
| Working temperature | -20℃~+70 ℃; | |
| Storage temperature | -30℃~+80 ℃; | |
| Relative humidity | 10~95%@10℃ (No condensation? | |
| Vibration | 50~500Hz,1.5G,0.15mm peak to peak | |
| Shock | 10G/peak (11ms sec) | |
