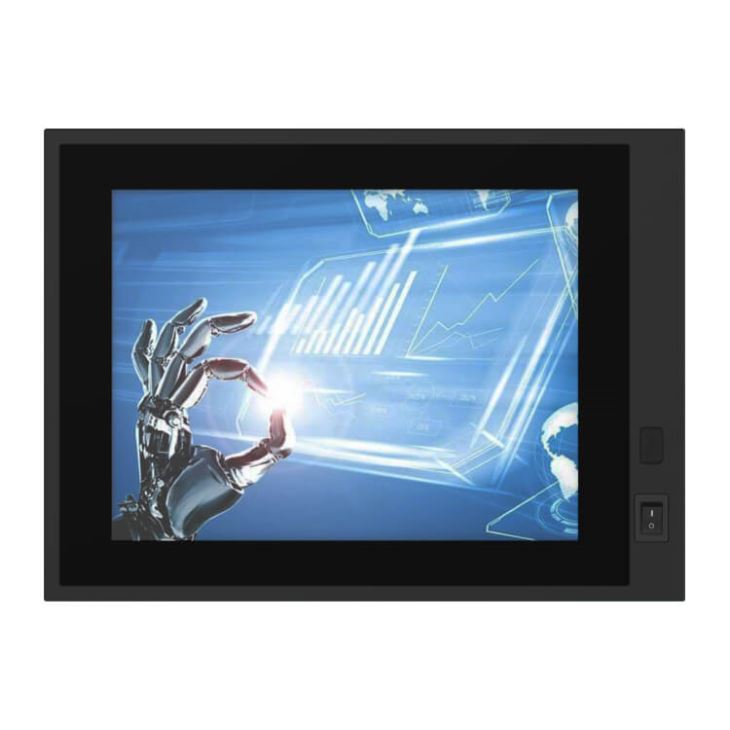

10 Inch ARM PCAP Touch Panel Pc
$1.00
TPC-DPC104R3288
- Customized ARM based 10.4 inch Touch Panel PC
- 10.4-inch Projective capacitive multi-point touch;
- Rockchip RK3288 CPU processor, 2GB DDR, 8GB emmc;
- Extreme-compact, fan-less design, Finned heat sink;
- Front with USB and on/OFF switch;
- Support Panel mounting and VESA mounting.
10 in stock
Description
System |
|
CPU |
Rockchip RK3288 |
CPU Ghz |
Quad-core 1.8Ghz |
Memory |
DDR3 2GB |
Storage |
8GB eMMC, Max. support 64GB (Expansion with TF card) |
System |
Andriod |
I/O |
|
Network |
1* Intel I211AT |
USB |
2* USB 2.0 + 1* USB 2.0 in front surface |
COM |
1*RS232 (Surge and electrostatic protection) |
Others |
DC IN, trigger button, Indicator light, antenna interface |
LCD |
|
Size/Type |
10.4?? TFT LCD |
Resolution |
1024 * 768 |
Brightness |
350 (cd/m2) |
Brightness MTBF |
WLED, 30 000 hours |
Viewing angle |
75/75/75/75 (Typ.) |
TOUCH |
|
Type |
Projective capacitive (P-cap.) |
Interface |
USB |
Transparency |
>90?3% |
Touch points |
10 Points |
Durability |
>100 000 000 times |
Surface hardness |
Mohs 6H |
Operating force |
?10g |
Structure |
|
Front Panel |
Magnesium-aluminum alloy, Anodizing treatment |
Back Panel |
SGCC Galvanized plate sheet, Sand-blasting |
Cooling System |
Finned aluminum heatsinks, fan-less design |
IP rating |
IP65 front panel |
Mounting |
Panel mounting, support VESA 75/100 |
Product Dimension |
292.3 x 215.6 x 48 (mm) |
Net weight |
3.0 KG |
Power and Environmental |
|
Voltage Input |
DC 12V (Over-current, Over-voltage and reverse polarity protection) |
Power Consumption |
About 15~20W |
Working temperature |
0?~+60 ? |
Storage temperature |
-20?~+70 ? |
Relative humidity |
10~95%@10??No condensation? |
Vibration |
50~500Hz,1.5G,0.15mm peak to peak |
Shock |
10G/peak?11ms sec? |
