15.6″ Low Power Slim Industrial Panel PC
$15.60
TPC-DCM156C
15.6″ low power slim industrial panel pc Intel Baytrail Celeron J1900
* 15.6-inch 1366*768 display, optional with high resolution 1920*1080;
* Magnesium aluminum panel, sheet-metal box structure, front IP65 rating;
* Intel Baytrail Celeron J1900 2.0Ghz, Quad-core processor;
* Impact & rugged, fanless design, large finned heat sink;
* DC 9~24V input, with over-current, over-voltage protection;

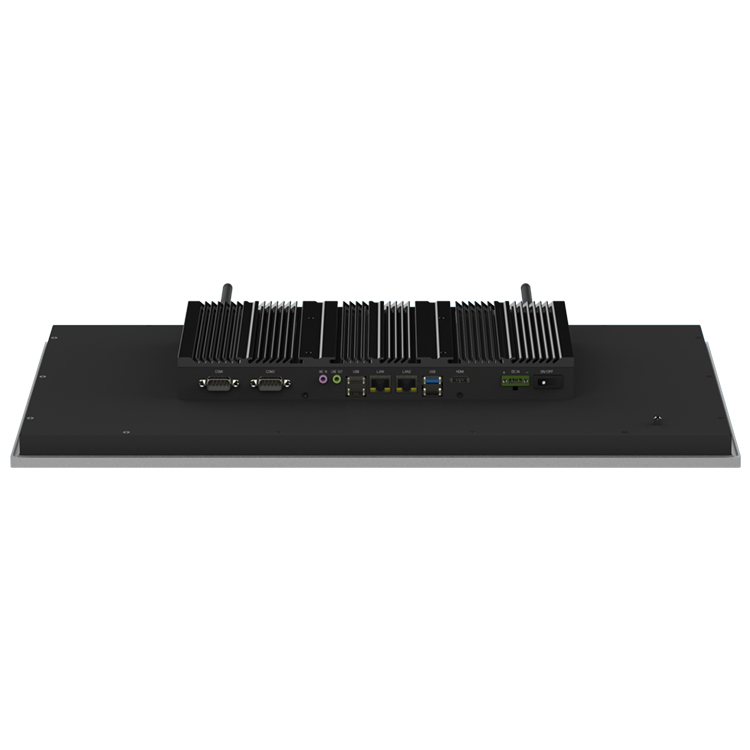

* I/O: 4x USB, 2x GLAN, 2x COM, 1x HDMI, Audio.
10 in stock
Description
| System | |
| BIOS | SPI AMI EFI BIOS |
| CPU | Intel Baytrail J1900 |
| CPU Ghz | Quad-core Four threads, 2.0Ghz |
| Memory | DDR3L, Max. up to 8GB |
| Storage | 1* 2.5″ SATA + 1* mSATA |
| Display | Support 1*HDMI output |
| Watch dog | Programmable 1~255 seconds |
| System | WIN7, Win7 embedded, WIN 8, WIN10, Linux |
| I/O | |
| Network | 2* Intel I211AT |
| USB | 3* USB 2.0 + 1* USB 3.0 |
| COM | 2* RS232 (Surge and electrostatic protection) |
| Audio | Realtek ACL 282 Audio controller |
| Speaker | Optional 2x 2W |
| Expansion | WIFI/3G/4G (1* Mini-PCIe slot) |
| Others | DC IN, trigger button, Indicator light, antenna interface |
| LCD | |
| Size/Type | 15.6″ TFT LCD |
| Resolution | 1366 * 768 |
| Brightness | 400 (cd/m2) |
| Brightness MTBF | WLED, 50 000 hours |
| Display area | 344.232 x 193.536 |
| Viewing angle | 85/85/80/80 (Typ.) |
| Colors | 16.2M |
| TOUCH | |
| Type | Projective capacitive (P-cap.) |
| Interface | USB |
| Transparency | >90±3% |
| Touch points | 10 Points |
| Durability | >100 000 000 times |
| Surface hardness | Mohs 6H |
| Operating force | ≤10g |
| Structure | |
| Front Panel | Magnesium-aluminum alloy, Anodizing treatment |
| Back Panel | SGCC Galvanized plate sheet, Sand-blasting |
| Cooling System | Finned aluminum heatsinks, fan-less design |
| IP rating | IP65 front panel |
| Mounting | Desktop, VESA |
| Product Dimension | 391.4 x 235.4 x 56.5 (mm) |
| Net weight | 5KG |
| Power and Environmental | |
| Voltage Input | DC 9~24V (Over-current, Over-voltage and reverse polarity protection) |
| Power Consumption | About 20W |
| Working temperature | 0℃~+60 ℃ |
| Storage temperature | -20℃~+60 ℃ |
| Relative humidity | 10~95%@10℃ (No condensation) |
| Vibration | 50~500Hz,1.5G,0.15mm peak to peak |
| Shock | 10G/peak (11ms sec) |
