ABOX-E81
$1.00

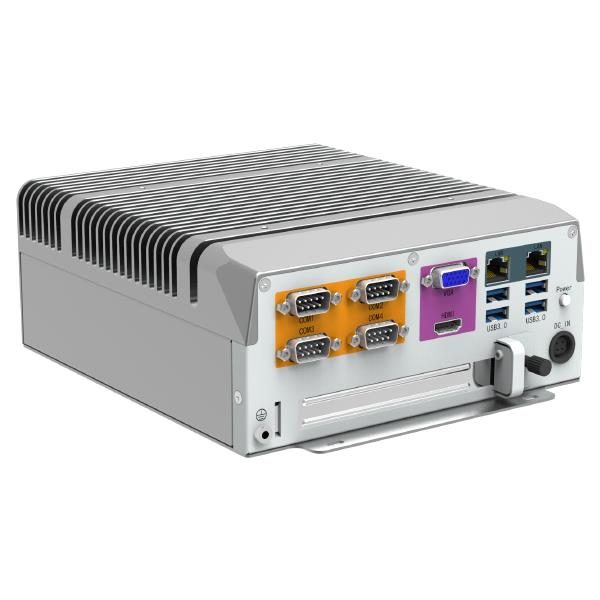

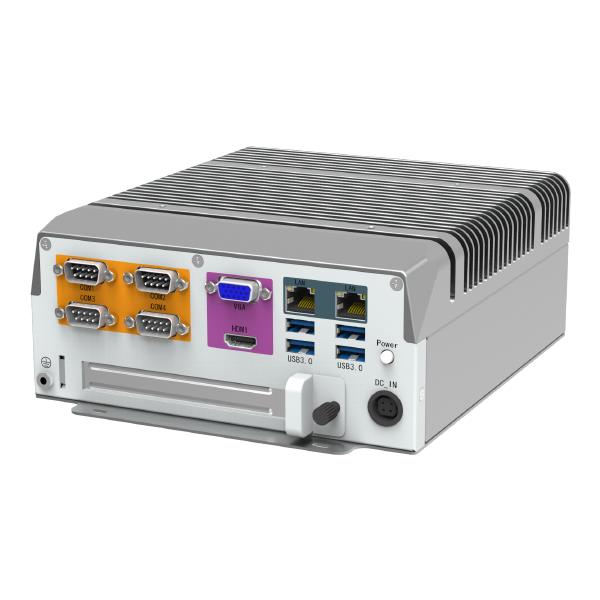

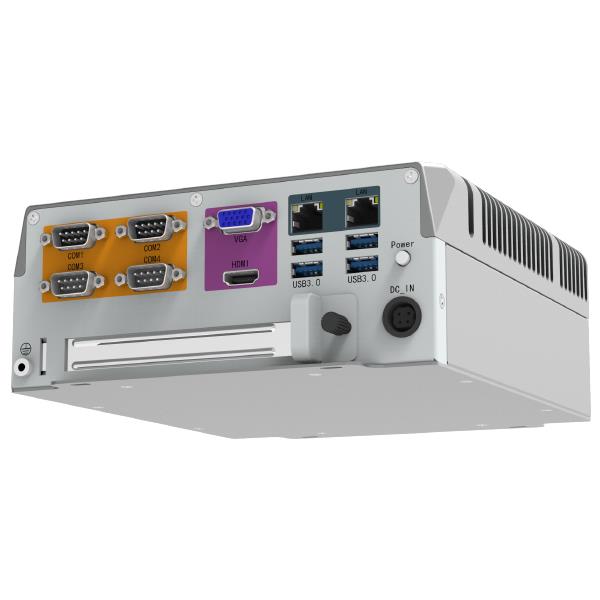

ABOX-E81
industrial pc fanless with PCIe/PCI expansion
● Available with Intel 6th or 7th Celeron, Core i3/i5 processors;
● 1*DDR, max. up to 16GB;
● I/O: 2* Display ports (1*HDMI +1*VGA), 4*COM, 4*USB (4*USB3.0);
● Support PCIe x4 or PCI expansion;
● 2* MiniPCIe expansion, wide-voltage DC 12~28V power input.
Description
ABOX-E81
Ordering Information:
| ABOX-E8160 | Intel Celeron 3855U/1*HDMI/1*DP/2*RJ45/6*USB/2*RS232/DC 12~28V/Mic In/Line-Out |
| ABOX-E8161 | Intel Skylake i3-6100/1*HDMI/1*DP/2*RJ45/6*USB/2*RS232/DC 12~28V/Mic In/Line-Out |
| ABOX-E8162 | Intel Skylake i5-6200/1*HDMI/1*DP/2*RJ45/6*USB/2*RS232/DC 12~28V/Mic In/Line-Out |
| ABOX-E8171 | Intel Kaby lake i3-7100/1*HDMI/1*DP/2*RJ45/6*USB/2*RS232/DC 12~28V/Mic In/Line-Out |
| ABOX-E8172 | Intel Kaby lake i5-7200/1*HDMI/1*DP/2*RJ45/6*USB/2*RS232/DC 12~28V/Mic In/Line-Out |
| Memory | DDR3L 4G/8G/16G |
| Storage | SSD: 32GB/64GB/128GB/256GB/512GB/1TB
HDD: 500GB/1TB |
| Wireless module | Wifi: 802.11b/g/n Mini PCIe 150M
3G/4G: All network 4G module |
FAQ: What is PCIe x4?
The length of the PCIe x4 slot is 39mm, which is also based on the PCIe x16 slot. It is implemented by reducing the data pins. It is mainly used for PCIe SSD solid state drives or PCIe transfer. Card installed M.2 SSD solid state drive.
The PCIe x4 slot is usually extended by the motherboard chip. However, with the increase of the number of PCIe channels inside the cpu, some high-end motherboards can now provide a PCI-E x4 slot with a directly connected CPU for PCIe SSD solid state drive.
Why can’t we find the PCIe x4 slot on the motherboard? In fact, it appears in the form of an M.2 interface.
However, like the PCIe x8 slot, the PCIe x4 slot is now in the form of a PCIe x16 slot, or is extended to an M.2 interface for installing M.2 SSD. M.2 wireless network card or other M.2 interface device, the remaining expansion cards are reserved for the PCIe x1 slot.
