I5 Fanless Embedded PC
$1.00
TBOX-2620

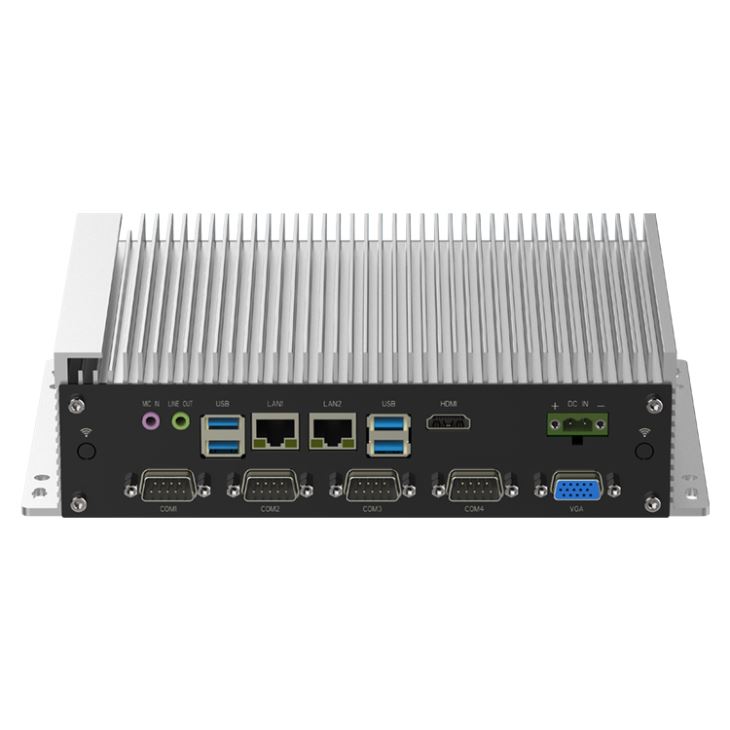

High performance fanless Intel 6th Skylake i5-6200U embedded Box PC
* Rugged &compact sealed aluminum box design;
* Intel Skylake Core i5-6200U 2.3Ghz high performance processor;
* DC 9~24V input, with over-current, over-voltage protection;
* Dimension: 236.5 x 150 x 60 (mm);
* I/O: 6x USB, 2x GLAN, 6x COM, 1x HDMI, 1x VGA, Audio.
10 in stock
Description
| Product model | TBOX-2620 |
| System & Hardware | |
| BIOS | SPI AMI EFI BIOS |
| CPU | Intel Core I5-6200U |
| CPU GHz | Dual-core 2.3Ghz |
| Memory | SO-DIMM, DDR4L, Max. up to 16GB |
| Storage | 1* 2.5” SATA + 1* mSATA |
| GPU | Intel HD Graphics Gen7 |
| Network | 2* Intel I211AT (Optional Wifi/3G/4G) |
| Audio | Realtek ACL 269 Audio controller |
| Expansion | 1x full-size mPCIe slot |
| Watch dog | 0~255 seconds programmable |
| System | Windows 7, Windows 7 Embedded, Windows8, Windows10, Linux |
| I/O | |
| COM | 6*RS232, DB9, 50~115.2kbps COM2 supports RS232/RS485 COM3 supports RS232/TTL |
| Network | 2*RJ45, 10/100/1000 Mbps |
| Audio | Line-In, Line-Out |
| USB | 6*USB (4*USB3.0 + 2*USB2.0) |
| Display | 1*VGA, 1*HDMI |
| Power Input | 1*2 pins, phoenix port |
| GPIO | 8*GPIO (Optional) |
| Structure | |
| Box Structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Cooling System | Finned aluminum heatsinks |
| Color | Silver + Black |
| Indicator | Power Switch/ Power LED/ HDD LED |
| Mounting | Support Desktop, Wall-mounted, |
| Dimension | 236.5 x 150 x 60 (mm) |
| Net weight | About 1.5KG |
| Power & Environmental | |
| Voltage Input | DC 9~24V (Over-current, Over-voltage and reverse polarity protection) |
| Power Consumption | 25W |
| EMC | CE/FCC Class A |
| Working temperature | -20℃~+70℃ |
| Wide temp. (Optional) | -40℃ ~ +70℃ |
| Storage temperature | -40℃~+80℃ |
| Relative humidity | 10~95%@10℃ No condensation? |
| Vibration | 50~500Hz,1.5G,0.15mm peak to peak |
| Shock | 10G/peak 11ms sec? |
