Rugged GEN 14th 14inch notebook

Rugged GEN 14th 14inch notebook

  • 14 inch FHD 16:9, 1920×1080, 1000nits

• Support for Win 11，
•® Intel Core™ Ultra 5/7 processor 155H
• The fuselage is equipped with dual battery design, and the endurance is increased to 6-8 hours
• IP65 high protection level, in accordance with MIL-STD-810G
• Support GPS, Optional Beidou, more accurate positioning
• Support 1920×1080 FHD, optional with Corning gorilla screen and sunshine visual screen
• Support rich expansion slot and fingerprint design, can be applied to various complex industry needs and expand demand

SKU: 14u Category:

Description



Basic parameters
Dimension 363.2 x 287.4 x 42.1mm
Weight device unit 2850g
Device Color black，silvery
LCD 14 inch FHD 16:9, 1920×1080, 1000nits
Touch Panel Optional 10 point G+G capacitive touch screen Corning® Gorilla® Glass
Camera Front 2.0MP

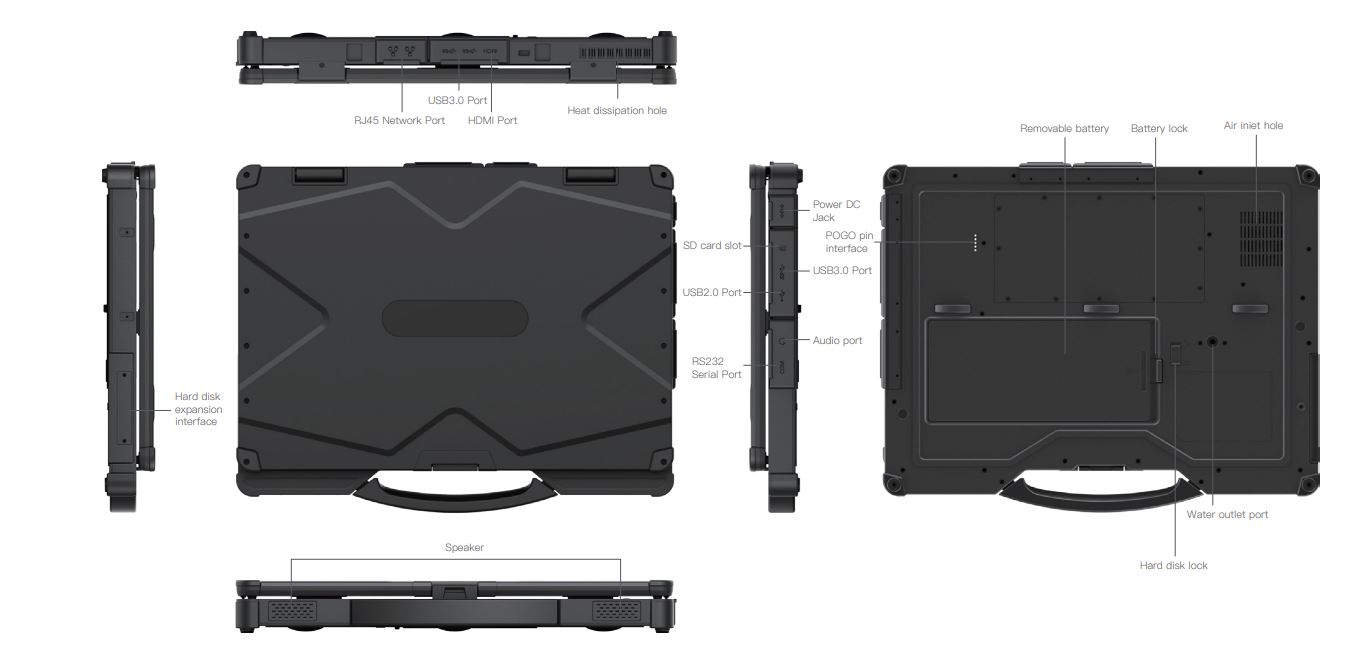

I/O HDMI x 1, POGO 5pin x 1,

USB 2.0 Type-A x 1, USB 3.0 Type-A x 3,

SIM Card x 1, SD Card x 1,

DB9 RS232 × 1, RJ45 × 2,

Φ3.5mm standard earphone jack x 1,

DC 19V 3.42A x 1
Power AC100V ~ 240V, Output DC 19V/3.42A/65W
Battery（Built-in）
Capacity 7.4V/1750mAh
Type Built in Li_polyment,battery loadable
Endurance 0.5hrs (Default 50% volume，default 200 nit，

Play 720P HD video)
Battery（Hot-swappable）
Capacity 7.4V/6300mAh
Type Li_polyment, removeable battery
Endurance 8.5hrs (Default 50% volume，default 200 nit，

Play 720P HD video)


Performance parameter
CPU ® Intel Core™ Ultra  5/7 processor 155H
OS Windows 11
RAM   32GB
ROM 256GB/512GB
Communication
WIFI WiFi 802.11 a/b/g/n/ac (2.4G+5.8G)
Bluetooth BT4.2
3G/4G

(Optional)

LTE FDD B1/B3/B5/B7/B8/B20/B28A

LTE TDD B38/B40/B41

WCDMA B1/B2/B5/B8

GSM B2/B3/B5/B8
GNSS Built-in GPS, Optional GPS+Beidou
Reliability
Operate

Temperature

 -20 °C ~ 60 °C
Store

Temperature

 -30 °C ~ 70 °C
Humidity 95% Non-Condensing
Rugged Feature IP65 certified, MIL-STD-810G certified
Drop Height 1.22m
Data Collection
Fingerprint SPI fingerprint (power on login)
NFC Optional, 13.56MHz, ISO/IEC 14443A/B,

ISO/IEC 15693, ISO/IEC 18092
