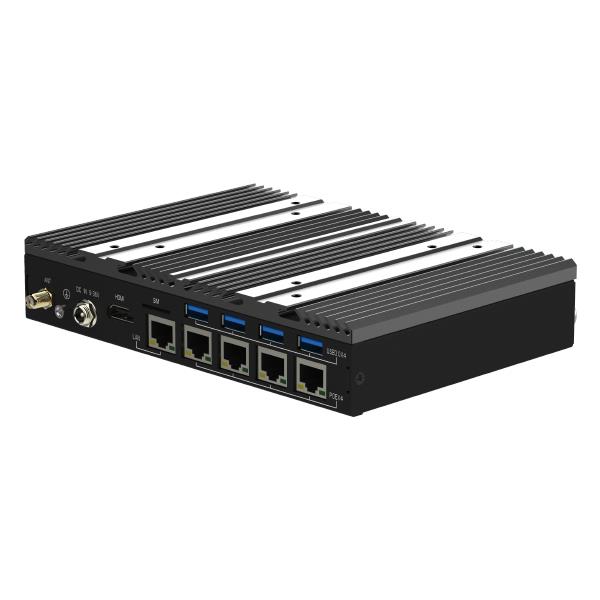

Slim Design PoE Industrial Embedded PC
$1.00
TBOX-3601
Slim designed fanless embedded Box PC
* Intel Skylake Celeron 3855U Dual-core 1.6Ghz;
* DC 9~36V, with over-current, over-voltage, reserve polarity protection;
* 5* Intel GLAN (4* support PoE), 8*GPIO (5V output, DB9 port);
* 2*RS232 (1*support RS485), 4*USB 3.0, 1*VGA, 1*HDMI;
* Operating temp. range: -20~+60C;
* Compact slim dimension: 180 x 125 x 35 mm;
* I/O: 5*GLAN (4*PoE), 4*USB 3.0, 2*COM, 1*VGA, 1*HDMI, GPIO (DB9), DC 9~36V.
10 in stock
Description
|
Product model |
TBOX-3601 |
|
System & Hardware |
|
|
BIOS |
SPI AMI EFI BIOS |
|
CPU |
Celeron 3855U |
|
CPU GHz |
Dual-core 1.6Ghz |
|
Memory |
SO-DIMM, DDR4L, Max. up to 16GB |
|
Storage |
1* mSATA |
|
GPU |
Intel HD Graphics 510 |
|
Network |
5* Intel I211AT (Optional Wifi/3G/4G) |
|
Audio |
Realtek ACL 269 Audio controller |
|
Expansion |
1x full-size mPCIe slot |
|
Watch dog |
0~255 seconds programmable |
|
System |
Windows 7, Windows 7 Embedded, Windows8, Windows10, Linux |
|
I/O |
|
|
COM |
COM1: RS232 COM2: RS232/RS485 |
|
Network |
LAN1~LAN4 support PoE, 802.3AF standard (Single port Max. up to 15.4w) PoE total power less than 45W LAN5: RJ45 |
|
Audio |
Line-In, Line-Out |
|
USB |
4* Camera USB3.0 |
|
Display |
1*VGA, 1*HDMI |
|
Power Input |
DC 5.5*2.5 |
|
SIM |
Sim slot |
|
GPIO |
8 channels Photoelectric isolated |
|
Structure |
|
|
Box Structure and surface |
Aluminum alloy, anodizing and anti-scratch treatment |
|
Cooling System |
Finned aluminum heatsinks |
|
Color |
Black |
|
Indicator |
Power Switch/ Power LED/ HDD LED |
|
Mounting |
Support Desktop, Wall-mounted, |
|
Dimension |
180 x 125 x 35 (mm) |
|
Net weight |
About 2.5KG |
|
Power & Environmental |
|
|
Voltage Input |
DC 9~36V (Over-current, Over-voltage and reverse polarity protection) |
|
Power Consumption |
25W (Max. 60w) |
|
EMC |
CE/FCC Class A |
|
Working temperature |
-20℃~+70℃ |
|
Storage temperature |
-40℃~+80℃ |
|
Relative humidity |
10~95%@10℃ No condensation? |
|
Vibration |
|
