TBOX-1410R1 by adding 1*RS232 interface
$1.00
Key features:
● Ultra-compact sealed aluminum box design;
● Intel Apollo lake Celeron J3455 low power processor;
● DC 12V input, with over-current, over-voltage protection;
● Dimension: 168.4 x 106.2 x 45 (mm)

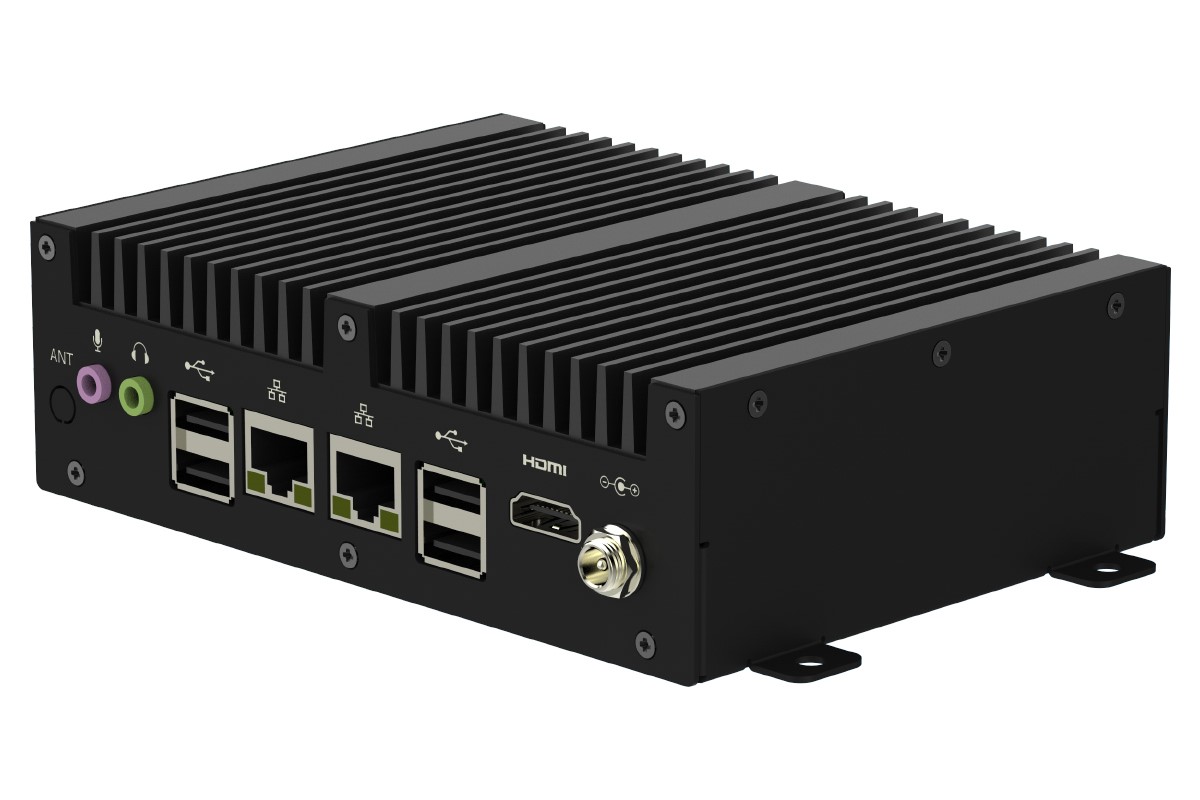

● I/O: 4x USB, 2x GLAN, 1x RS232, 1x HDMI, Audio.
Description
TBOX-1410R1 by adding 1*RS232 interface
Specification parameter
Product model TBOX-1410R1
System & Hardware
BIOS SPI AMI EFI BIOS
CPU Intel Apollo lake J3455
CPU GHz Quad-core Four threads, 1.5Ghz
Memory SO-DIMM, DDR3L-1866MT/S, Max. up to 8GB
Storage 1* 2.5’’ SATA + 1* mSATA
GPU Intel HD Graphics 500
Network 2* Intel I211AT (Optional Wifi/3G/4G)
Audio Realtek ACL 269 Audio controller
Expansion 1x full-size mPCIe slot
Watch dog 0~255 seconds programmable
System Windows10, Linux, Unix
I/O
COM No COM ports
Network 2*RJ45, 10/100/1000 Mbps
Audio Line-In, Line-Out

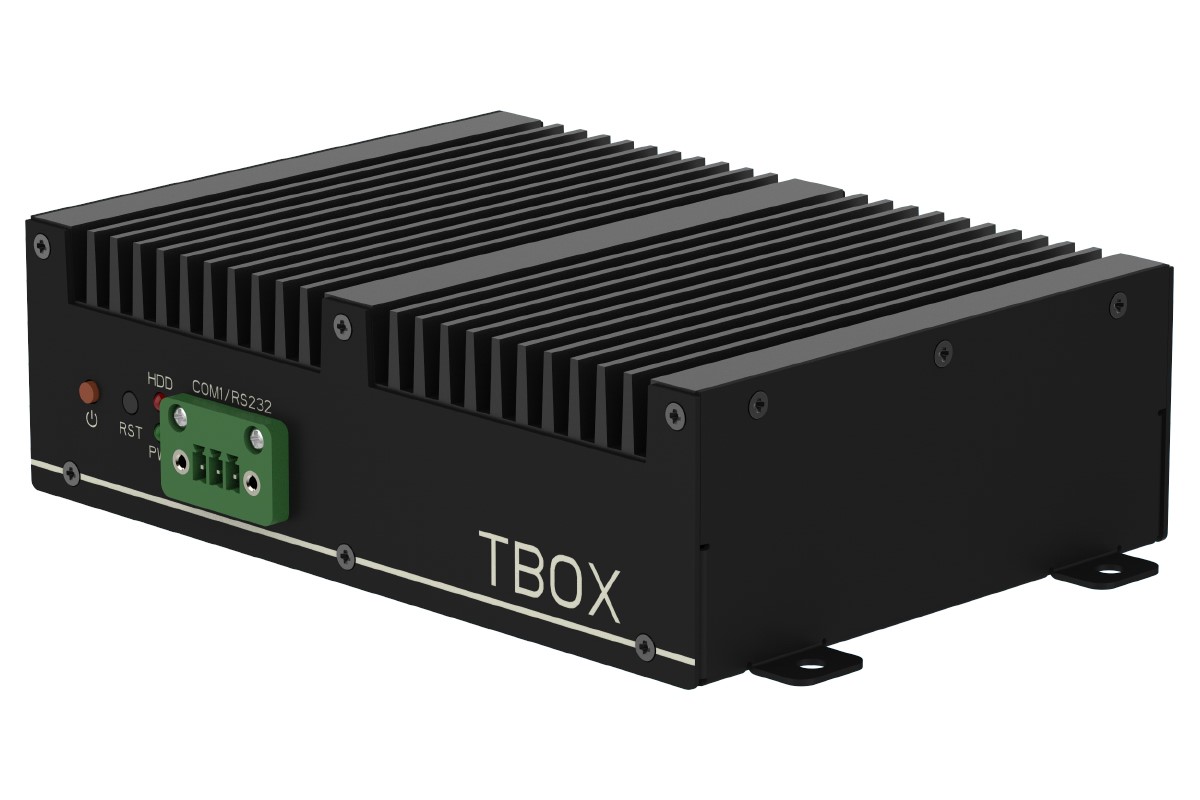

Serial port 1*RS232
USB 4*USB3.0
Display 1*HDMI
Power Input DC 5.5*2.5
Structure
Box Structure and surface Aluminum alloy, anodizing and anti-scratch treatment
Cooling System Finned aluminum heatsinks
Color Black

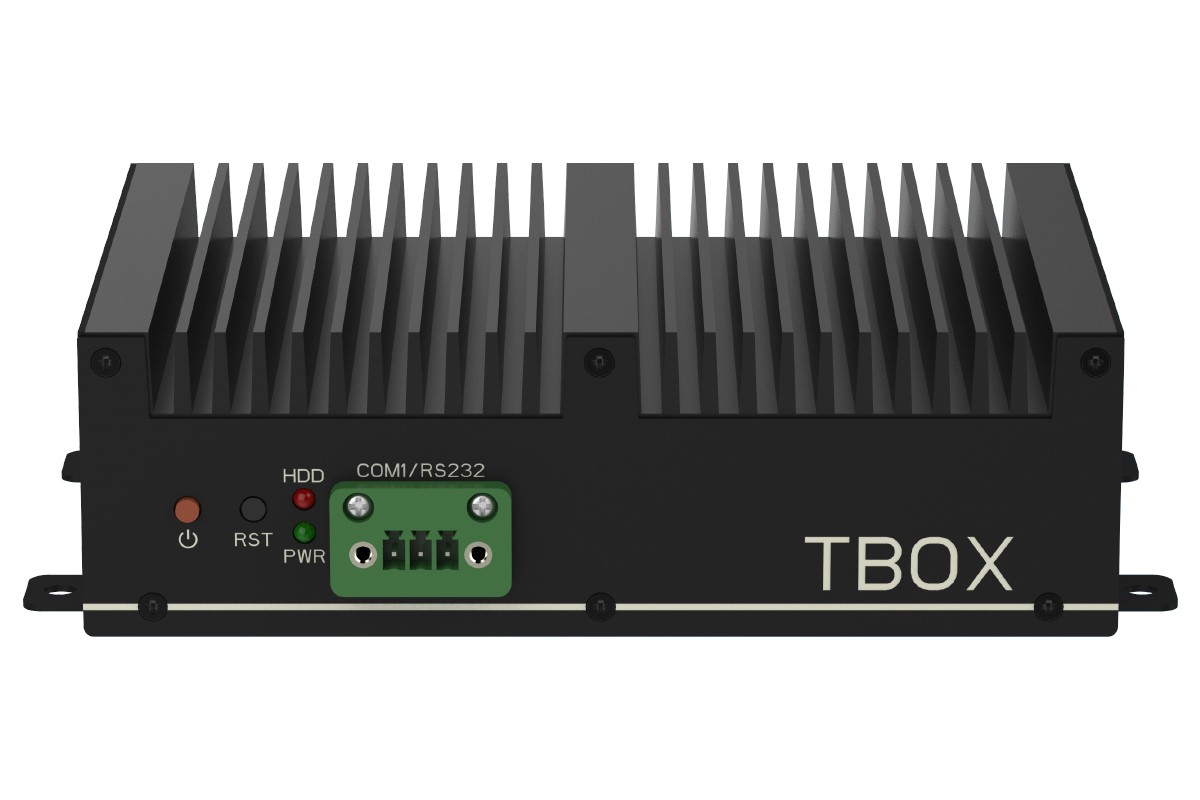

Indicator Power Switch/ Power LED/ HDD LED
Mounting Support Desktop, Wall-mounted,
Dimension 168.4 x 106.2 x 45 (mm)
Net weight About 1.3KG
Power & Environmental
Voltage Input DC 12V (Over-current, Over-voltage and reverse polarity protection)
Power Consumption 20W
EMC CE/FCC Class A
Working temperature -20℃~+60 ℃
TBOX-1410R1
Specs
TAICENN Technology 3 | 4 www.taicenn.com
Storage temperature -30℃~+70 ℃
Relative humidity 10~95%@10℃（No condensation）
Vibration 50~500Hz,1.5G,0.15mm peak to peak
Shock 10G/peak（11ms sec）
