Ultra Small High Performance Embedded PC
$1.00

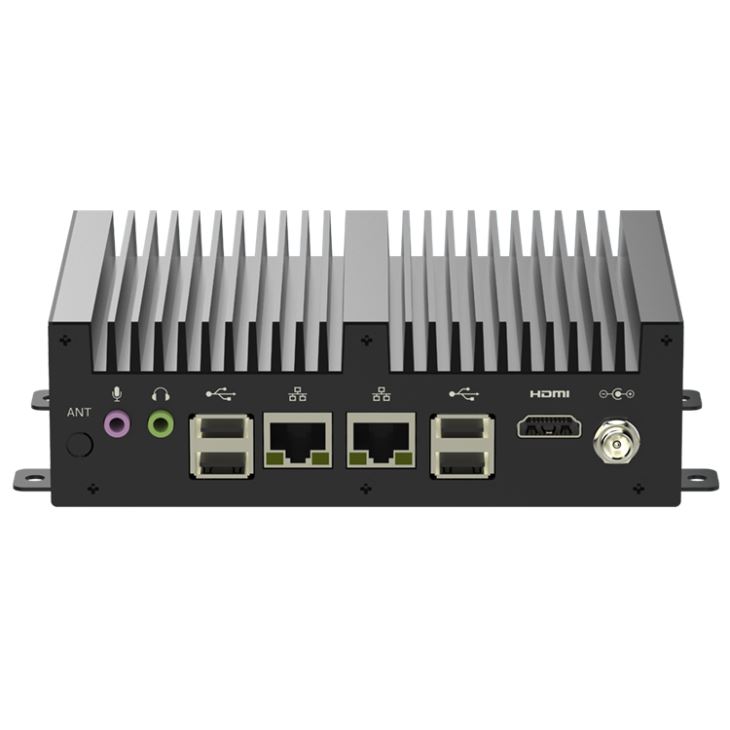

TBOX-1620:
Ultra-small Intel Core i5-6200U embedded box pc
* Ultra-small design, sealed aluminum box design;
* Intel high performance Core i5-6200U 2.3Ghz CPU;
* DC 9~24V input, with over-current, over-voltage protection;
* Dimension: 168.4 x 106.2 x 45 (mm);
* I/O: 4x USB, 2x GLAN, 1x HDMI, Audio.
10 in stock
Description
| Product model | TBOX-1620 |
| System & Hardware | |
| BIOS | SPI AMI EFI BIOS |
| CPU | Intel Core I5-6200U |
| CPU GHz | Dual-core 2.3Ghz |
| Memory | SO-DIMM, DDR4L, Max. up to 16GB |
| Storage | 1* mSATA |
| GPU | Intel HD Graphics 520 |
| Network | 2* Intel I211AT (Optional Wifi/3G/4G) |
| Audio | Realtek ACL 269 Audio controller |
| Expansion | 1x full-size mPCIe slot |
| Watch dog | 0~255 seconds programmable |
| System | Windows 7, Windows 7 Embedded, Windows8, Windows10, Linux |
| I/O | |
| COM | No COM |
| Network | 2*RJ45, 10/100/1000 Mbps |
| Audio | Line-In, Line-Out |
| USB | 4*USB3.0 |
| Display | 1*HDMI |
| Power Input | 1*2 pins, phoenix port |
| Structure | |
| Box Structure and surface | Aluminum alloy, anodizing and anti-scratch treatment |
| Cooling System | Finned aluminum heatsinks |
| Color | Black |
| Indicator | Power Switch/ Power LED/ HDD LED |
| Mounting | Support Desktop, Wall-mounted, |
| Dimension | 168.4 x 106.2 x 45 (mm) |
| Net weight | About 1.3KG |
| Power & Environmental | |
| Voltage Input | DC 12~19V (Over-current, Over-voltage and reverse polarity protection) |
| Power Consumption | 25W |
| EMC | CE/FCC Class A |
| Working temperature | -20℃~+60℃ |
| Storage temperature | -30℃~+70℃ |
| Relative humidity | 10~95%@10℃No condensation? |
| Vibration | 50~500Hz,1.5G,0.15mm peak to peak |
| Shock | 10G/peak 11ms sec? |
